MercRacing Pierburg CWA100 Pump kit with Audi harness

This pump upgrade is a favorite among performance shops and performance users worldwide. The pump offers a robust and innovative design. Driven by a brushless motor, integrated speed controller what can be controlled via remote module(PWM). The pump is extremely reliable while providing great flow and cooling performance.

The pump offers very quiet operation, even when operating at full speeds.

At jackal, we recommend snipping the SIGNAL wire so the pump runs 100% with our tuning.

Specifications

• Plug and play harness included for Audi vehicles
• Installs as a replacement on the original OEM Audi location
• Can be used for other aftermarket air to water cooling systems
• Approximate Weight: 1.0 kg
• Amps usage: 8.5A max. / (approx. 0.2mA in standby mode)

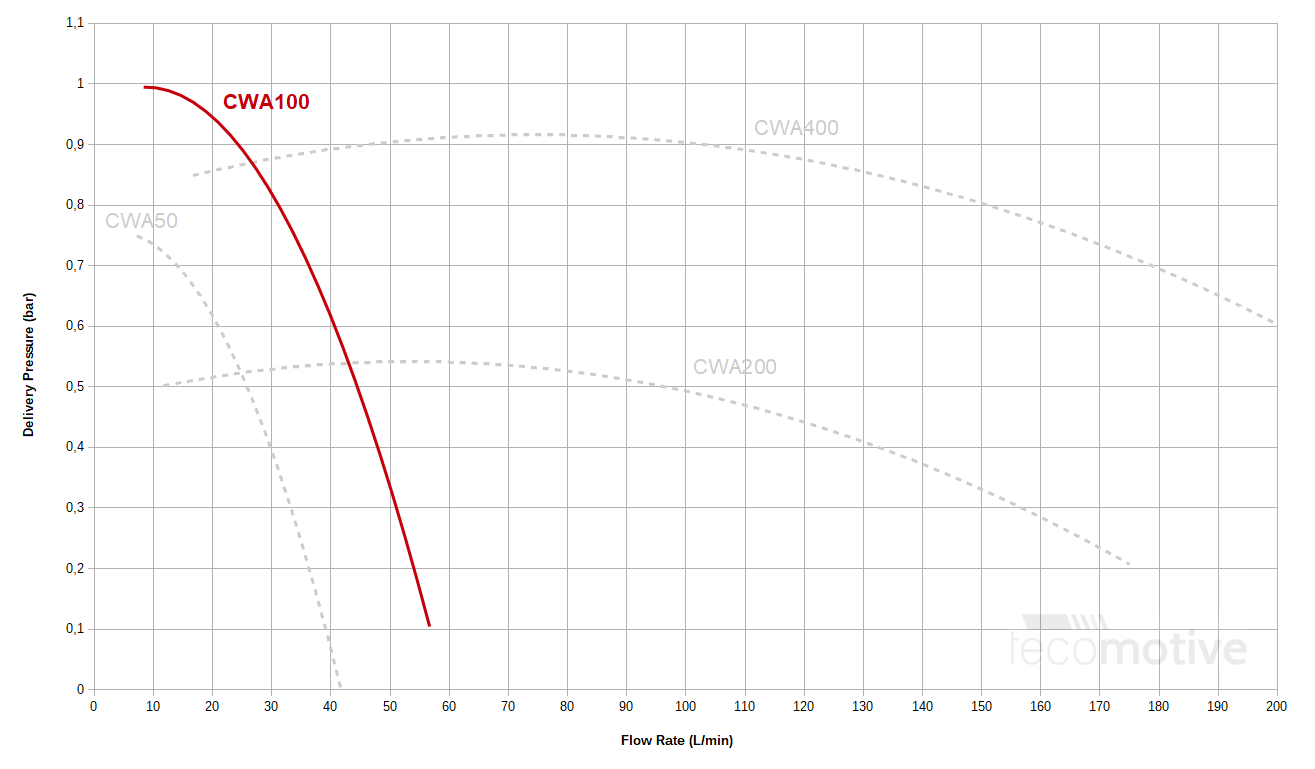

• Flow: around 30-35 l/min @ 0.75bar / 40-45 l/min @ 0.50bar
• Speed: approximately 7000 rpm
